EraFlow™ - Integrated Geoscience Platform
One platform. 17 modules. 54 plugins.
EraFlow™ brings geophysics, geology, geomechanics and engineering together in a single integrated subsurface platform. Data validated in GeoScan™ flows into EraFlow, where each module hands its result to the next, from wireline logs and seismic volumes to fracture models, production forecasts and economics.
The EraFlow modules
Grouped by workflow stage. Modules with a detail section are linked.
Data, visualization and AI4 modules
DataFlow
Data import, export and management, including Petrel / OpenWorks read-write and third-party formats.
Viz
3D visualization workspace bringing seismic, wells, grids and simulation results into one scene.
NNFlow
Neural-network and machine-learning toolkit for property prediction and pattern recognition across modules.
Utilities
Shared helper tools: unit and projection converters, calculators and batch operations.
Wells and petrophysics4 modules
PetroFlow
Petrophysical evaluation: shale volume, porosity, saturation and TOC from wireline logs.
TieFlow
Well-to-seismic ties, synthetic seismograms and time–depth relationships.
BoreFlow
Wellbore stability and geomechanical analysis along planned and drilled trajectories.
Seismic2 modules
WaveFlow
Seismic data conditioning and wavelet processing to prepare volumes for interpretation and inversion.
Structural and reservoir modeling3 modules
Geomechanics and stimulation3 modules
Production and economics2 modules
Module details
What each module does, and its key features.
WellFlow
Computes pore pressure, stresses, geomechanical logs and natural fracture proxies from wireline logs. Interactive TOC estimation and petrophysics to compute shale content, porosity and water saturation. Multivariate regression and Artificial Intelligence tools to estimate missing logs.

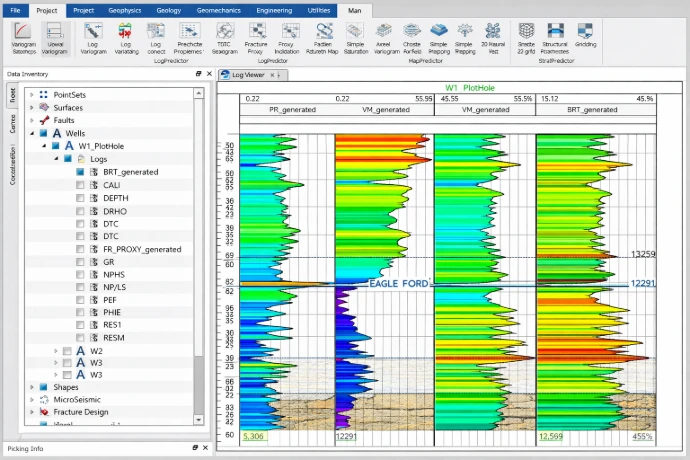

WellFlow™ displays, for Quality Control (QC) and interpretation, log data in a user-friendly log window. The module uses different methods to predict along the wellbore properties such as TOC, Geomechanical logs, Brittleness, Pore Pressure, stresses and fracture density from conventional logs.
Key features
- ✓Well correlations: Displays, picks and edits well tops
- ✓Facies classification: Generates rock types using K-means classification or a self-organizing method
- ✓Log prediction: Generates new synthetic logs from existing data using powerful neural networks or linear multi-regression analysis when physical data is unavailable
- ✓Generates blocked logs from a 3D grid using different available methods for continuous or discrete logs
- ✓Vertical variogram modeling using blocked or original logs, with or without facies constraint
- ✓Pore pressure and stress profile calculations along wellbores and in 3D volumes derived from wireline logs
- ✓Estimation of natural fracture proxies derived from conventional logs
- ✓Petrophysics and Interactive estimation of TOC, volume of shale, porosity, and water saturation
SeisFlow
Colored inversion, stochastic-geostatistical inversion, facies constrained pre-stack elastic inversion, spectral decomposition, structural attributes and seismic natural fracture proxies. Well ties, velocity modeling and time depth conversion.
SeisFlow™ Module uses imported seismic data to compute attributes derived from spectral decomposition, volumetric curvature, colored inversion, and lithology constrained extended elastic inversion.
Key features
- ✓Provides multiple seismic conditioning methods to remove noise
- ✓Uses well ties to create time depth relationships
- ✓Generates seismic structural curvature attributes which serve as enhanced fault indicators
- ✓Computes multiple spectral attributes which are hydrocarbon indicators and facies differentiators
- ✓Provides relative and absolute colored inversion that enhances seismic resolution
- ✓Provides fast stochastic-geostatistical inversions that honor structural complexity
- ✓Provides lithology constrained pre-stack extended elastic inversion to estimate geomechanical properties and brittleness in 3D
MappingFlow
2D mapping techniques based on geostatistics, and artificial intelligence to estimate rock properties and well performance distribution.
MappingFlow™ uses limited 2D well data to create geologic maps and 2D grids of key properties such as curvature, distance to faults, average reservoir porosity, and brittleness which can be correlated to EUR and other well performance proxies over large areas. Many interpolation methods are available: deterministic, stochastic and neural network for 2D modeling. Utilities for contouring a faulted surface in a map window, fault polygon editing, horizontal variogram, and anisotropy modeling are available.
Key features
- ✓Creates surface or 2D grid from available point sets or well tops
- ✓Supports fault polygon constraint, well adjustment, deterministic and stochastic interpolation methods. (geostatistics and neural networks)
- ✓Interpolates available reservoir properties in a created 2D grid.
- ✓Correlates multiple reservoir property maps with available EUR or a production indicator for sweet spot identification using neural networks
StrataFlow
3D structural framework and 3D grid builder able to handle reverse and normal faults in structured grids. Generated 3D grids can be easily exported to any third-party software. Builds automatically custom grids around microseismic data or a long a horizontal well.
StrataFlow™ uses structural horizons and faults to build water tight structural frameworks that lead to structured 3D geocellular grids with vertical columns.
Key features
- ✓Uses a state-of-the-art structural framework builder able to handle a large number of reverse, normal and any other type of faults
- ✓Creates structured 3D geocellular grids from structural frameworks
- ✓Builds simple 3D grids from 2D grids
- ✓Upscales fine 3D grids to coarser 3D grids
- ✓Snaps 3D properties from one 3D grid to another using multiple upscaling and downscaling methods
- ✓Builds automatically a grid around a cloud of microseismic data
- ✓Builds automatically a custom grid around a horizontal for FracFlow™ input data
RockFlow
3D reservoir modeling of continuous petrophysical properties and discrete facies using geostatistics and Artificial Intelligence. Continuous Fracture Modeling (CFM) technology for accurate and predictive natural fracture models.
RockFlow™ uses a 3D geocellular grid, seismic attributes and well data to propagate in 3-Dimensions, key rock properties such as facies, TOC, brittleness, porosity and natural fracture density. Multiple available methods (deterministic, stochastic and advanced neural network) that integrate all the available log and seismic attributes data are available.
Key features
- ✓Facies analysis by combining different seismic attributes through pattern recognition algorithms
- ✓Propagates continuous rock properties using upscaled well logs in the 3D grid volume using multiple available algorithms
- ✓Geostatistics for Facies Modeling: Deterministic Indicator Kriging and Stochastic Sequential Indicator simulation with option for collocated Co-simulation
- ✓Geostatistics for Petrophysical modeling: Deterministic Kriging (simple and ordinary) and Stochastic Sequential Gaussian Simulation, conditioned to Facies models and option for Collocated Co-simulation
- ✓3D neural network: combines all available seismic attributes and well data to capture the complex relationship with the target log
MecaFlow
Reservoir geomechanics using the Material Point Method (MPM) to model interaction between hydraulic and natural fractures, predict differential stress and strain validated with microseismicity. Includes elastic and poroelastic modeling for modeling well interferences.
MecaFlow is an advanced geomechanical technology based on the Material Point Method (MPM) and is able to simulate 1) the initial heterogeneous reservoir stress magnitude and orientation resulting from the interaction between regional stress and natural fractures, and 2) the interaction between hydraulic fractures and natural fractures during stimulation. This unique technology opens new doors to derive a better understanding of the frac stage performance. This provides the ability to create completion optimization workflows. Unlike other geomechanical tools, MecaFlow’s simulated strain predicts the main features of the microseismicity--confirming the validity of the input data (continuous natural fracture models) and the continuum mechanics approach used to simulate the interaction between the hydraulic and natural fractures responsible for the shearing observed in the microseismicity
Key features
- ✓Provides the horizontal differential stress that could be used to identify areas where the fracturing treatment needs to be changed or stages to be refractured
- ✓Provides local stress rotations and the direction of propagation of a hydraulic fracture at each stage
- ✓Simulates the hydraulic fracturing process and provides the strain which is a good proxy for the stimulated reservoir volume, or microseismicity. The strain is used to estimate the geomechanical half lengths which are used as constraints in frac design
- ✓Able to account for stress shadowing between the stages but also between wells during zipper fracs
- ✓Accounts for pressure depletion using poroelaticity to model frac hits
SRVFlow
Estimates SRV and asymmetric geomechanical half lengths from strain or microseismicity. The derived geomechanical half-lengths are used as constraints in FracFlow.
SRVFlow™ provides the ability to estimate SRV based on the geomechanical results. If microseismic data is available the module allows the estimation of various microseismic volumes
Key features
- ✓Provides automatic estimation of the geomechanical half-lengths
- ✓Provides ability to interpret manually the SRV region from the geomechnical strain results
FracFlow
New generation fast 3D grid based frac simulator with proppant transport constrained by validated geomechanical half lengths. Resulting fracture geometry used as input in FlowFlow and commercial reservoir simulators.
FracFlow™ is a new generation lightning fast 3D grid based frac simulator with proppant transport. The unique workflow uses the geomechanical half-lengths derived in FracFlow™ as a constraint that captures the lateral stress gradients that control the asymmetric hydraulic fracture propagation. Experimental design and sensitivity analysis provide tornado plots which explain why certain frac stages do or do not perform well, allowing the frac engineer to identify what frac parameter(s) they need to change to adapt the frac stage treatment to the stress gradients reducing hydraulic fracture growth. The rock properties used as input in a frac simulator (Young’s Modulus, Closure stress, etc.) are distributed in 3D using RockFlow capabilities and extracted with an automatically custom built 3D well grid around the considered well.
Key features
- ✓Unique asymmetric 3D grid based frac design constrained by geomechanical half lengths that captures stress gradients causing the asymmetric behavior
- ✓Experimental design for sensitivity analysis allows the identification of frac parameters causing shorter or longer wings.
- ✓Automatic match of the pressure in the frac analysis module
- ✓Frac design and analysis are extremely fast yet uses more constraints than any other commercial frac simulator
- ✓Export fracture geometry to commercial reservoir simulators
- ✓Provides the frac geometry to FlowFlow for prediction of well performance and pressure depletion
FlowFlow
Constrained production forecast using asymmetric tri-linear model. Constrained pressure depletion estimated with Fast Marching Method (FMM). Automatic history matching of rates or pressure. PVT and BHP estimation tools.
FlowFlow™ uses an asymmetric tri-linear model that provides a mechanistic model to represent the production from the unconventional wells. The new tri-linear model is as fast as a simplistic Decline Curve Analysis, yet it provides a reliable and realistic estimate of the EUR which honors the complex asymmetric nature of the SRV in unconventional wells. Initial reservoir parameters are estimated with Unconventional Rate Analysis tools. Automatic history matching of pressure or rate provides the EUR and key average rock properties. Pressure depletion can be simulated with a Fast Marching Method that uses as input the previously derived fracture geometry and the 3D models of the effective medium. A PVT analysis tool is included to handle all possible phases and a BHP analysis tool allows the estimation of Bottom Hole Pressure when Tubing Wellhead Pressure is available.
Key features
- ✓Decline curve analysis (many methods some of them not available in commercial software)
- ✓Unique asymmetric tri-linear model able to predict EUR by matching rate or pressure
- ✓Bottom hole pressure estimation module using tubing wellhead pressure
- ✓PVT analysis tools provides the necessary correlations to handle different phases
- ✓Sensitivity analysis allows the identification of key frac parameters affecting EUR
- ✓Pressure depletion using Fast Marching Method simulation
- ✓DFIT analysis tools
- ✓Interactive Unconventional Rate Analysis tools to estimate key frac geometry parameters such as average half length and average SRV permeability
- ✓PVT analysis tools using common industry correlations
EconFlow
Using the derived production profiles estimated in FlowFlow or other software, Net present value, ROI, ROR, payout are computed.
EconFlow™ Uses the derived predicted production profiles to make economical projections. Provides the usual economical indicators for a well.
From validated data to interpretation
GeoScan™ validates the data. EraFlow™ interprets it. One chain, no re-keying.
Step 1
GeoScan™ - data management
A cloud-hosted web platform that centralizes, secures, validates and cleans technical petroleum data.
Discover GeoScanStep 2
EraFlow™ - interpretation
Validated data is integrated directly into EraFlow, reducing the risk of error in use, analysis and interpretation.
Explore the modulesLicensing
EraFlow™ is offered under two licensing models.
Perpetual license
Supported by an annual maintenance and software update agreement priced at 18%–20% of the initial license fee.
Time-based license
Available on a daily, monthly or annual basis, depending on your requirements.
